SigNoz Standalone Installation on macOS

NOTE: I HAVE APPENDED THE ORIGINAL DOCS, NOT ALL OF THE CONTENT OF THIS VERY PAGE IS MY ORIGINAL WORK, I HAVE MODIFIED AT MANY PLACES.​

At the moment, SigNoz supports instalaltion on macOS or Linux system only. (Refer to issue #645 to know status of SigNoz installation using WSL). There are two ways in which you can install SigNoz:

  • You may execute a script that checks your environment, installs Docker Engine and Docker Compose on Linux, and runs the docker compose up command for you.
  • You may execute the docker compose up command yourself.

Both methods are provided below.

info

SigNoz recommends you to use the install script on macOS and the following Linux distributions:

  • Ubuntu (preferably 20.04 LTS)
  • Debian (v11.0)
  • OpenSuse (v15.3)
  • CentOS (v8.5.2)
  • SUSE Linux Enterprise Server (SLES v4.12)

If you're using a different Linux distribution, see the Install SigNoz Using Docker Compose section.

Prerequisites​

  • A Linux or macOS machine. Microsoft Windows is currently not supported.
  • On macOS, you must manually install Docker Engine or Docker Desktop (Docker Engine ships with it) before you run the install script.
  • The install script automatically installs Docker Engine on Linux.
  • A minimum of 2GB of memory must be allocated to Docker irrespective of the Operating System.
  • Git client
  • Ensure that the port 3301 is open on the machine where you will install SigNoz.
info

To setup development environment, refer

Install SigNoz Using the Install Script​

  1. In a direcrory of your choosing, clone the SigNoz repository and cd into the signoz/deploy directory by entering the following commands:

    git clone -b main https://github.com/SigNoz/signoz.git && cd signoz/deploy/

  2. Run the install.sh script:

    ./install.sh

Install SigNoz Using Docker Compose​

info

Before you install Signoz, ensure that Docker Compose is installed on your machine.

  1. In a directory of your choosing, clone the SigNoz repository and cd into the signoz/deploy directory by entering the following commands:
    git clone -b main https://github.com/SigNoz/signoz.git && cd signoz/deploy/

  1. To install SigNoz, enter the sudo docker-compose up command, specifying the following:

    • -f and the path to your configuration file
    • -d to un containers in the background

    For x86:

      sudo docker-compose -f docker/clickhouse-setup/docker-compose.yaml up -d

    For Apple M1 (arm64)

      sudo docker-compose -f docker/clickhouse-setup/docker-compose.arm.yaml up -d

If you are on a macOS machine, the install script will automatically open Docker Desktop and an instance of clickhouse-setup will spin up, something like this.

clickhouse

These are the containerised images that you would see running.

load-hotrod
hotrod
clickhouse-setup-clickhouse-1
clickhouse-setup-otel-collector-metrics-1
clickhouse-setup-alertmanager-1
clickhouse-setup-otel-collector-1
query-service
fronted

Verify the Installation​

  1. Ensure that your containers are running correctly. To view the status of your containers, run the following command:
docker ps

The output should look similar to the following:

CONTAINER ID   IMAGE                                          COMMAND                  CREATED         STATUS                   PORTS                                                        NAMES
130fee61f894   signoz/frontend:0.6.1                          "nginx -g 'daemon of…"   4 minutes ago   Up 4 minutes             80/tcp, 0.0.0.0:3301->3301/tcp, :::3301->3301/tcp            frontend
7c957db328d3   signoz/otelcontribcol:0.5.0                    "/otelcontribcol --c…"   4 minutes ago   Up 4 minutes             4317/tcp, 55679-55680/tcp                                    clickhouse-setup_otel-collector-metrics_1
ee8c2ec75926   signoz/query-service:0.6.1                     "./query-service -co…"   4 minutes ago   Up 4 minutes             8080/tcp                                                     query-service
7eb27952387b   signoz/otelcontribcol:0.5.0                    "/otelcontribcol --c…"   4 minutes ago   Up 4 minutes             0.0.0.0:4317->4317/tcp, :::4317->4317/tcp, 55679-55680/tcp   clickhouse-setup_otel-collector_1
d1706dd5903e   grubykarol/locust:1.2.3-python3.9-alpine3.12   "/docker-entrypoint.…"   4 minutes ago   Up 4 minutes             5557-5558/tcp, 8089/tcp                                      load-hotrod
a5360a1d773f   signoz/alertmanager:0.5.0                      "/bin/alertmanager -…"   4 minutes ago   Up 4 minutes             9093/tcp                                                     clickhouse-setup_alertmanager_1
874b01ec9d4d   yandex/clickhouse-server:21.12.3.32            "/entrypoint.sh"         4 minutes ago   Up 4 minutes (healthy)   8123/tcp, 9000/tcp, 9009/tcp                                 clickhouse-setup_clickhouse_1
3694594501fa   jaegertracing/example-hotrod:1.30              "/go/bin/hotrod-linu…"   4 minutes ago   Up 4 minutes             8080-8083/tcp                                                hotrod

  1. Wait for all the pods to be in running state, and then point your browser to http://<IP-ADDRESS>:3301/ to access the dashboard, replacing <IP-ADDRESS> with the IP address of the machine where you installed SigNoz.

    Example:

    • If you're running SigNoz on your local machine, you should point your browser to http://localhost:3301/
    • If you're running SigNoz on cloud VM (AWS ec2, Azure or GCP) with Linux instance (given in the above list), check the public IP address of that very instance on which you're running SigNoz. For example if the IP is 66.82.18.247, you should point your browser to http://66.82.18.247:3301/ to access the SigNoz dashboard.
tip

If you are using a Virtual Machines on cloud, do not forget to add the port 3301 (if not already present) and other ports that you might need add in near future (for instrumenting your applications or using their frontend) to allow incoming requests to your instance.

Here are some examples on how those dashboards will look:​

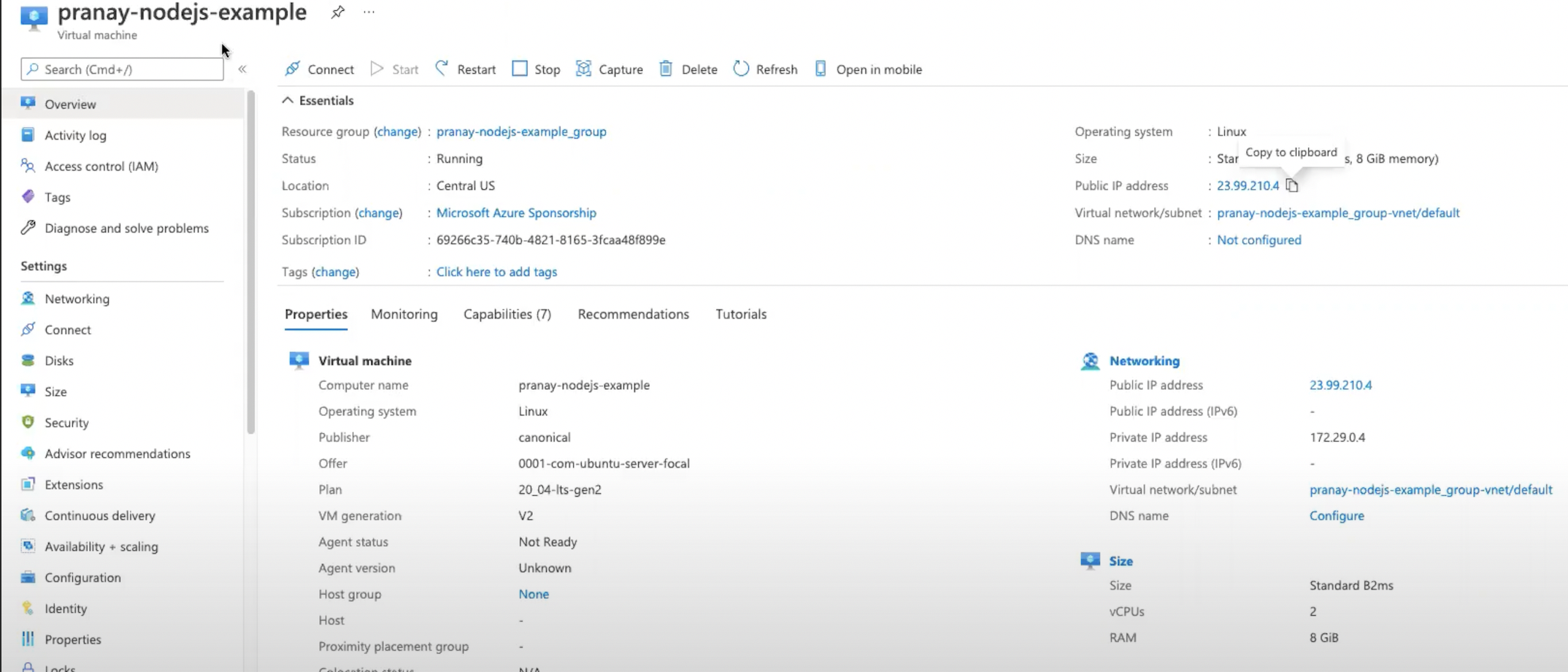

azure

Here, Public IP Address is the address you should append to :3301 and fire in the local browser.

To add a new incoming port address, go to NETWORKING > ADD INBOUND PORT RULE > insert 3301 in DESTINATION PORT RANGES

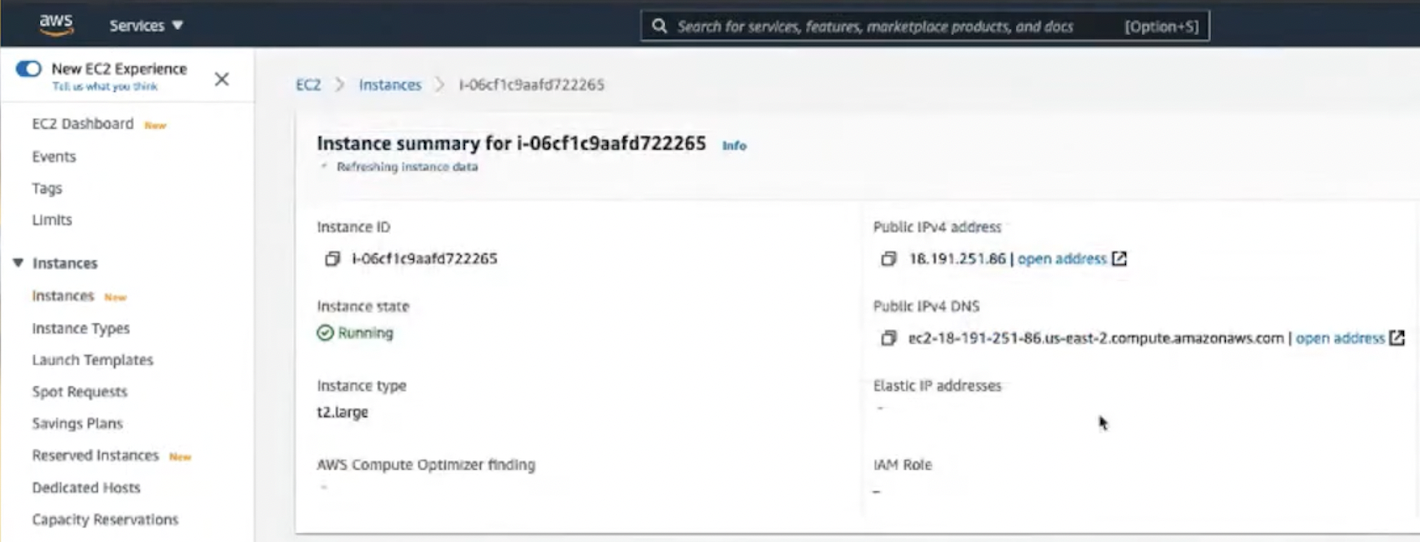

azure

Here, Public IPv4 Adreess is the address you should append to :3301 and fire in the local browser.

info

The docker-compose.yaml installs a sample application named HotR.O.D that generates tracing data. You can explore the SigNoz dashboard with the data provided by the sample application. If you wish to remove the sample application, follow the steps in the Remove the Sample Application section.

Install specific version of SigNoz​

  1. In a directory of your choosing, clone the SigNoz repository and cd into the signoz/deploy directory by entering the following commands:

    git clone -b main https://github.com/SigNoz/signoz.git && cd signoz/deploy/

  2. Checkout to the specific version tag. For example, to install SigNoz version v0.6.1:

    git checkout v0.6.1

  3. Run the install.sh script:

    ./install.sh

For more details on SigNoz Versions - click here to go to releases section

Go to Docker Standalone Operate section for detailed instructions.

Next Steps​
